SD Card Replacement:
To access the SD card on your DAKBoard Touch 22 Display, follow the steps below:
- Lay your Touch 22 Display face down. On the back, you will see the box containing the CPU. You may need to remove the Wall Mounting plate to access the Six Screws you will need to remove. See below:

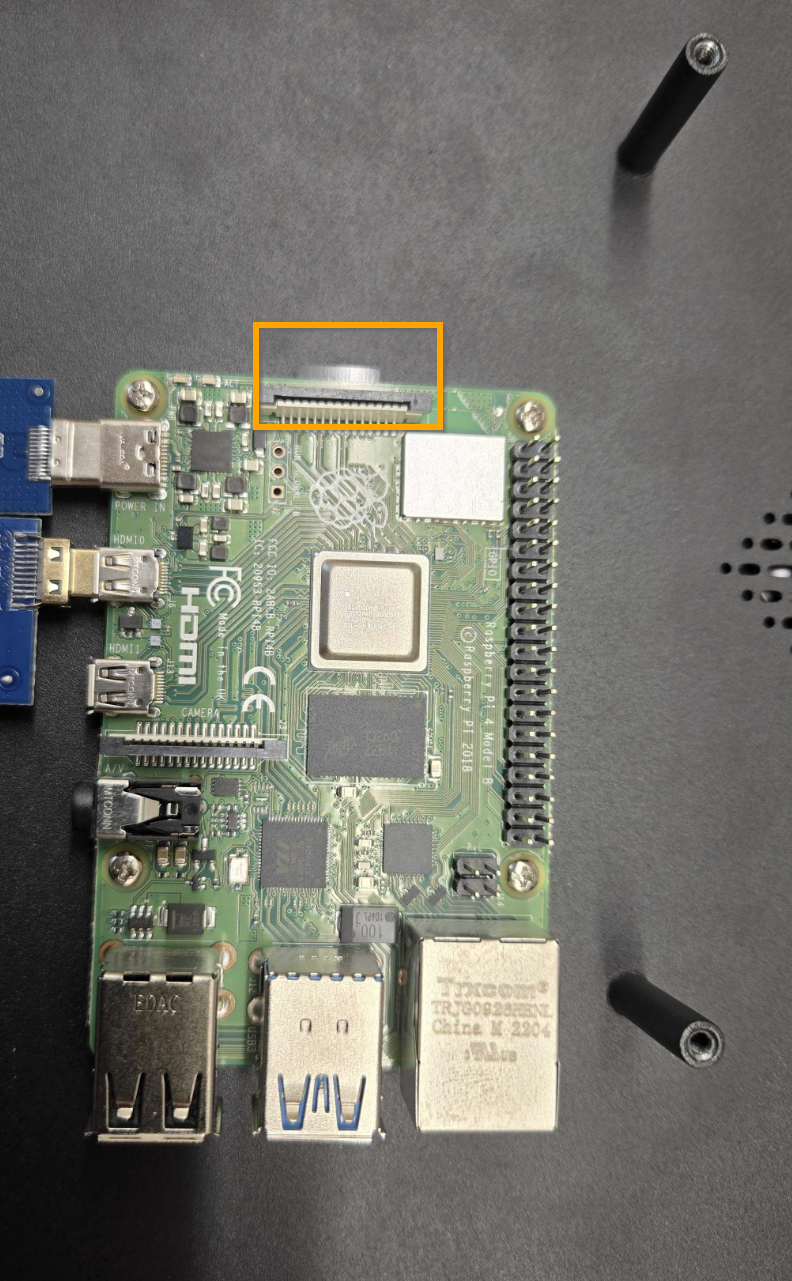

- Remove this box, and you will see the Raspberry Pi CPU mounted beneath it. The SD Card can be located opposite the USB and Ethernet ports on the bottom of the computer. See below:
- This can be pulled out of the CPU. You can do this with your fingers or carefully with a pair of needle nose pliers:

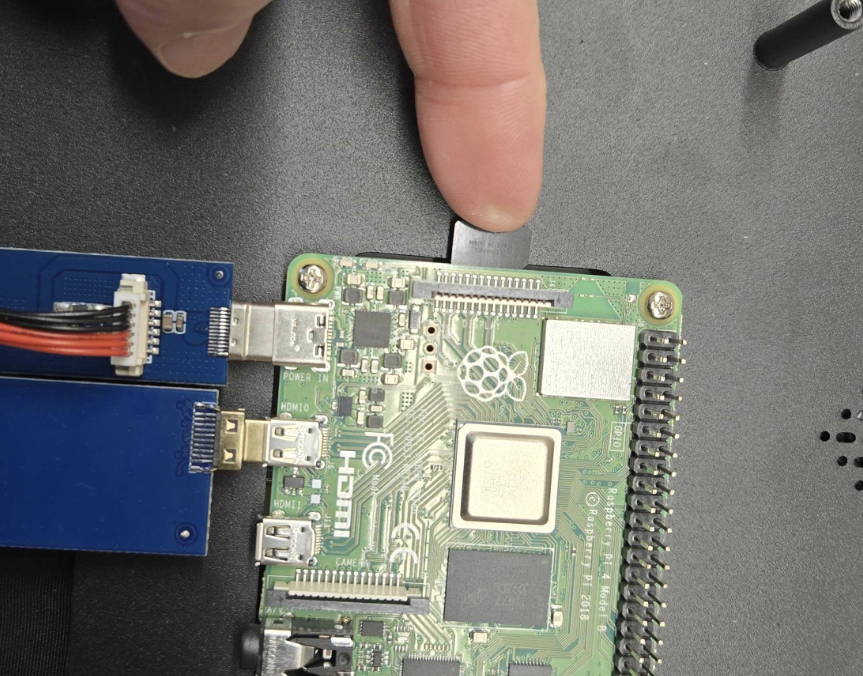

- Once you have upgraded or chosen to replace the SD card with the latest OS, you can put it back into the Display and push it in with your finger:

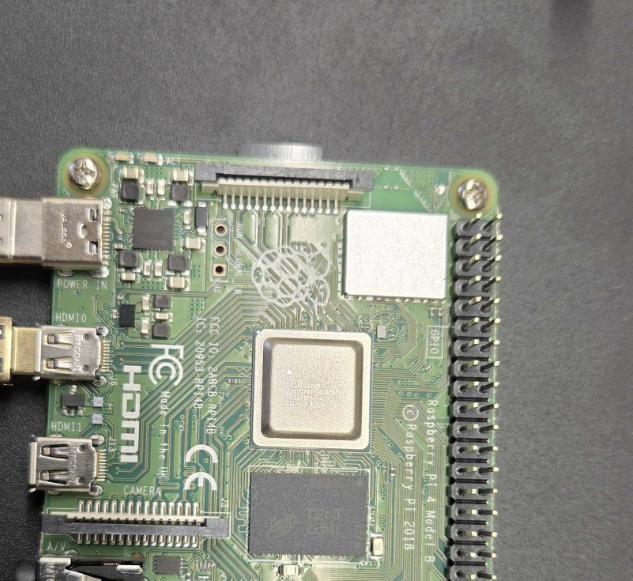

- Make sure it is fully inserted, as seen below:
Once you have reconnected the block and plugged the power back in, follow the onscreen instructions to reconnect your Display to your account.
